CANE CREEK SUSPENSION
CANE CREEK SUSPENSION
Sussed Out can offer customers a range of suspension products from Cane Creek at great prices! We can offer the latest products also with premium back-up and support!
Sussed Out can offer all products in the CANE CREEK catalogue. There are quite a few different options to choose from so we can help you decide which suspension is right for you. This comes down to your budget, travel & adjustment requirements as well as your riding demands.
If you don’t see what you are looking for, please send us an email or give us a call! Call us now for the best support around!
CANE CREEK SHOCKS
CANE CREEK DB COIL CS
Riders who prefer the linear spring feel and exceptional low speed sensitivity of a coil shock will now have access to a climbing platform. DBcoil CS is the world’s first enduro-specific coil shock for 150-170mm travel bikes with a Climb Switch. (CS). The proprietary CS (patent-pending) feature for Double Barrel shocks adjusts low-speed damping characteristics on-the-fly. Keeping the suspension fully active while you climb results in better connection to the trail and increased efficiency without annoying pedal-bob. When you’re ready to descend, it’s all Double Barrel.
Features:-
Weight: 454g (Damper only, weight varies by size)
Damping: Twin-tube independent compression and rebound in two high-speed and four low-speed damping circuits
Adjustments: 4-way independent adjustment;
- High speed compression
- Low speed compression
- High speed rebound
- Low speed rebound
- Climb Switch On/Off
Finish: Anodized and laser-etched
Shaft Material: Steel
Mounting Interface: High performance low friction bushing with 1/2″ universal axle
Manufactured in North Carolina
Hardware and springs supplied separately.
| Stock Code | Size |
| •BAD0616 | 200x57mm (7.87×2.25″) |
| •BAD0617 | 200x50mm (7.87×2.0″) |
| •BAD0620 | 216x63mm (8.5×2.5″) |

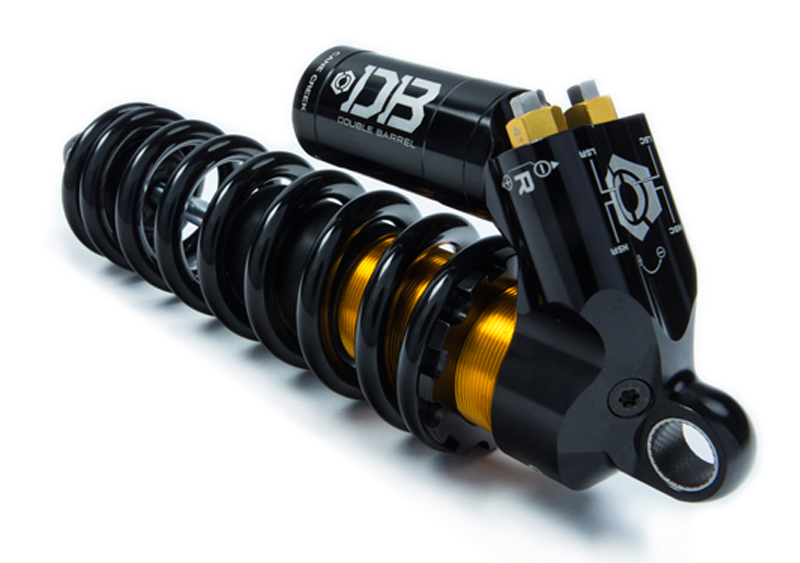

CANE CREEK DB COIL
No other shock on the market inspires rider confidence or provides the level of adjustability and control like the Cane Creek Double Barrel. Twin-tube technology and 4-way independent adjustability combined with unrivaled levels of quality have made the Double Barrel the best in its calss year after year. The double barrel enables custom, rider tuned damping performance, optimizing the ride for every rider on every bike.
Features:-
Weight: Damper only, 442g (weight varies by size)
Damping: Twin-tube independent compression and rebound
Adjustments:
4-way independent adjustment;
- High speed compression
- Low speed compression
- High speed rebound
- Low speed rebound
Spring: Steel or Titanium (Ti in 3.0” and 3.5” stroke only)
Shaft Material: Induction-hardened 4130 steel
Shaft Diameter: 8mm
Finish: Anodized and laser-etched
Mounting Interface: Norglide® bushing 1/2″ Universal Axle
Hardware and spring supplied separately.
| Product Code | Size |
| •BAD0058 | 240x76mm (9.5×3.0″) |
| •BAD0059 | 200x57mm (7.87×2.25″) |
| •BAD0060 | 215x63mm (8.5×2.5″) |
| •BAD0061 | 222x70mm (8.75×2.75″) |
| •BAD0062 | 222x63mm (8.75×2.5″) |
| •BAD0063 | 200x50mm (7.87×2.0″) |
| •BAD0064 | 267x90mm (10.5×3.5″) |
| •BAD0065 | 190x50mm (7.5×2.0″) |
| •BAD0083 | 230x70mm (9×2.75″) |
CANE CREEK DB AIR CS
Climbing has evolved. The DBair CS takes the DBair the world has come to love and adds a selectable climbing mode to specifically address the demands of ascending on the bike. However CS is not your conventional pedal-platform as it adjusts both Low Speed Compression (LSC) and Low Speed Rebound (LSR). By selectively tuning both compression and extension phases when climbing, the shock maintains better traction and control while enhancing pedaling efficiency through the shock’s entire travel.
Features:-
Weight: 509g (weight varies by size)
Damping: Twin-tube independent compression and rebound
Adjustments: 4-way independent adjustment;
- Air spring rate
- High speed compression
- Low speed compression
- High speed rebound
- Low speed rebound
Finish: Anodized and laser-etched
Mounting Interface: Norglide® bushing 1/2″ Universal Axle
Air Volume: The DBair CS is availible with a standard air can or XV (Extra Volume) air can.
The XV can offers a higher air volume and is perfectly suited to bikes with a significantly progressive leverage ratio, such as Intense and Santa Cruz. These bikes require a more linear air spring. The less progressive air spring allows the rider to ride with more High Speed Compression while still achieving full travel.
XV cans are also available separately for retro fitting on existing DBair dampers.
Hardware supplied separately.
| Stock Code | Size | Air Sleeve Type |
| •BAD0549 | 215x63mm (8.5×2.5″) | Std |
| •BAD0604 | 190x50mm (7.5×2.0″) | Std |
| •BAD0605 | 200x50mm (7.87×2.0″) | Std |
| •BAD0606 | 200x57mm (7.87×2.25″) | Std |
| •BAD0607 | 222x63mm (8.75×2.5″) | Std |
| •BAD0608 | 222x70mm (8.75×2.75″) | Std |
| •BAD0609 | 240x76mm (9.5×3.0″) | Std |
| •BAD0610 | 267x90mm (10.5×3.5″) | Std |
| •BAD0693 | 215x63mm (8.5×2.5″) | XV |
| •BAD0694 | 200x57mm (7.87×2.25″) | XV |
| •BAD0695 | 222x70mm (8.75×2.75″) | XV |
| •BAD0696 | 240x76mm (9.5×3.0″) | XV |
| •BAD0735 | 200x55mm (7.87×2.16″) | Std |
| •BAD0942 | 200x50mm (7.87×2.0″) | XV |

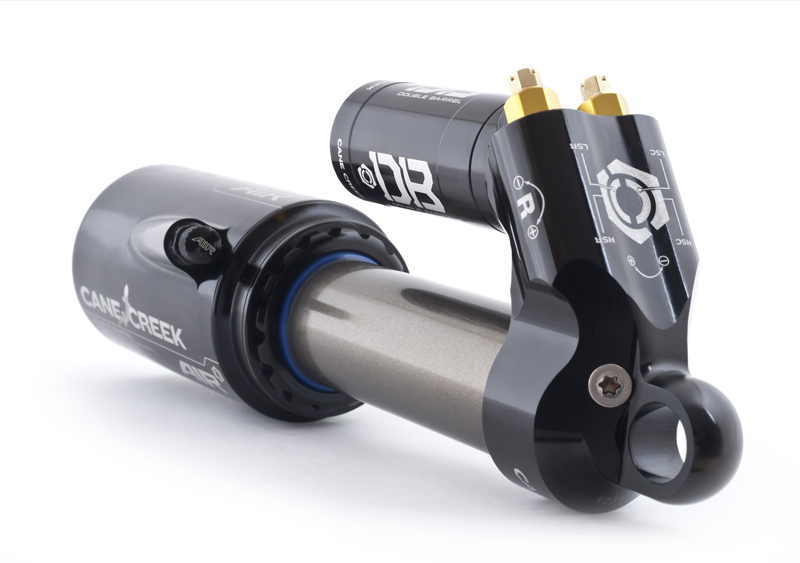

CANE CREEK DB AIR
No one knows your ride better than you. The DBair builds upon the Double Barrel legacy being the first air-sprung rear shock featuring twin-tube technology and 4-way independent adjustability combined with unrivaled levels of quality. The DBair enables custom, rider-tuned damping performance, optimizing the ride for every rider on every bike.
Features:-
Weight: 500g (weight varies by size)
Damping: Twin-tube independent compression and rebound
Adjustments: 4-way independent adjustment;
- Air spring rate
- High speed compression
- Low speed compression
- High speed rebound
- Low speed rebound
Finish: Anodized and laser-etched
Mounting Interface: Norglide® bushing 1/2″ Universal Axle
Air Volume: The DBair is availible with a standard air can or XV (Extra Volume) air can.
The XV can offers a higher air volume and is perfectly suited to bikes with a significantly progressive leverage ratio, such as Intense and Santa Cruz. These bikes require a more linear air spring. The less progressive air spring allows the rider to ride with more High Speed Compression while still achieving full travel.
XV cans are also available separately for retro fitting on existing DBair dampers.
Hardware supplied separately.
| Stock Code | Size | Air Sleeve Type |
| •BAD0124 | 222x63mm (8.75×2.5″) | Std |
| •BAD0125 | 222x70mm (8.75×2.75″) | Std |
| •BAD0127 | 240x76mm (9.5×3.0″) | Std |
| •BAD0128 | 267x90mm (10.5×3.5″) | Std |
| •BAD0494 | 240x76mm (9.5×3.0″) | XV |
| •BAD0678 | 222x70mm (8.75×2.75″) | XV |

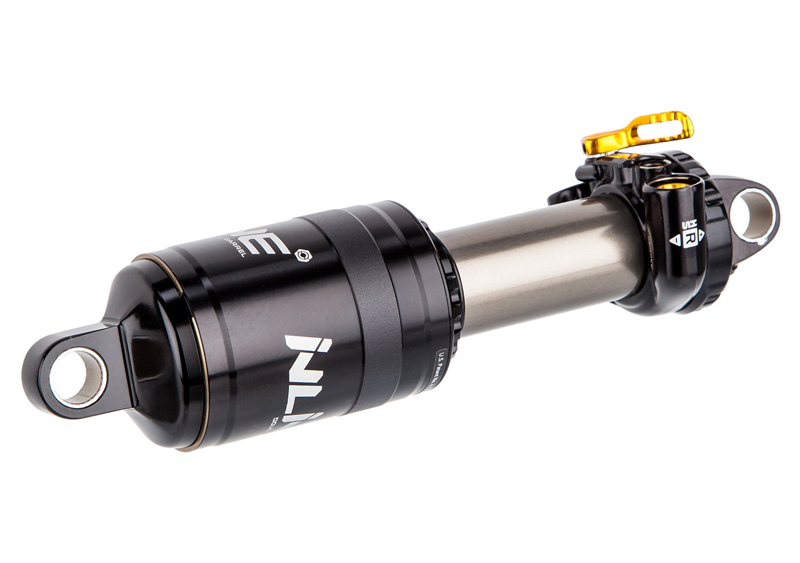

CANE CREEK DB INLINE
Having first shaken up the world of Downhill, with the DBCoil & DBair. Then All-Mountain and Enduro with the DBair CS. Cane Creek are now disrupting the shorter travel scene with the DBinline, aka ‘The Disruptor’.
Designed specifically for bikes around 120 – 150mm of travel. DBinline is compact and lightweight thanks to the removal of the external resovoir, but it doesn’t mean its light on performance. Cane Creek’s designers have packed in ALL of the class leading technology and adjustability that DB is renowned for. The result is a fully adjustable, short travel damper with performance rivalled by none.
Features:-
Weight: 295g (weight varies by size)
Damping: Twin-tube independent compression and rebound
Adjustments: 4-way independent adjustment;
- Air spring rate
- High speed compression
- Low speed compression
- High speed rebound
- Low speed rebound
- Climb Switch on/off
Finish: Anodised and laser-etched
Mounting Interface: Norglide® bushing 1/2″ Universal Axle
Hardware supplied separately.
| Stock Code | Size |
| •BAD0430 | 165x38mm (6.5×1.5″) |
| •BAD0431 | 190x50mm (7.5×2.0″) |
| •BAD0432 | 200x50mm (7.87×2.0″) |
| •BAD0433 | 200x57mm (7.87×2.25″) |
| •BAD0434 | 215x63mm (8.5×2.5″) |
| •BAD0932 | 184x44mm (7.25×1.73″) |
| •BAD1159 | 200x55mm (7.87×2.16″) |

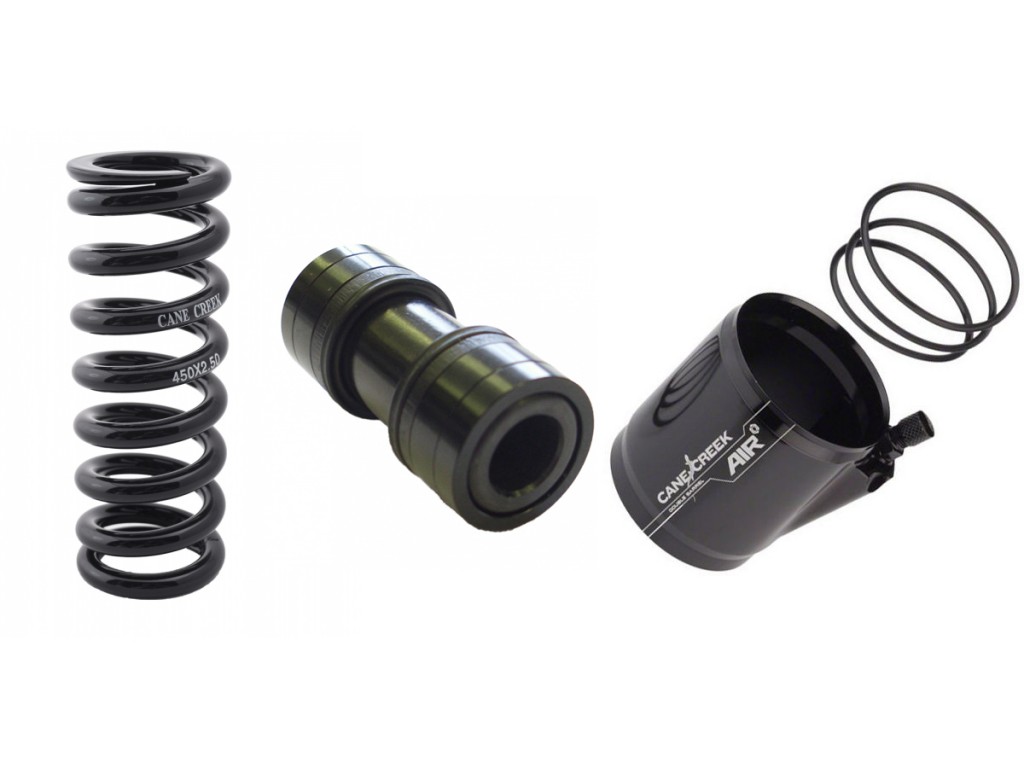

CANE CREEK ACCESSORIES
Cane Creek offer a range of accessories or their shocks.
STEEL SHOCK SPRINGS
EYELET MOUNTING HARDWARE
LARGE VOLUME AIR CANS
All available from Sussed Out Suspension.
LATEST CANE CREEK PRODUCTS FROM SUSSED OUT SUSPENSION
If you need any help speccing your Cane Creek products, please don’t hesitate to give us a call – 01206 299641
