OHLINS MTB SUSPENSION
Ohlins MTB
Sussed Out Suspension owners Will & Toby Thomas both previously worked with Ohlins Suspension on motorcycles.
When this prestigious company begin offering mountain bike products, it made total sense for Sussed Out to offer a range of products to their customers backed up with premium support.
Öhlins Racing has been an integrated part of the motorsport industry as well as the motorcycle and automotive industry for 40 years. Their focus has always been on high quality products, service and support, all the way from the MotoGP circuits to the local national racing events in over 50 distributing countries.
Now with a new line of MTB suspension products, you can now benefit from this wealth of suspension experience aboard your own mountain bike!

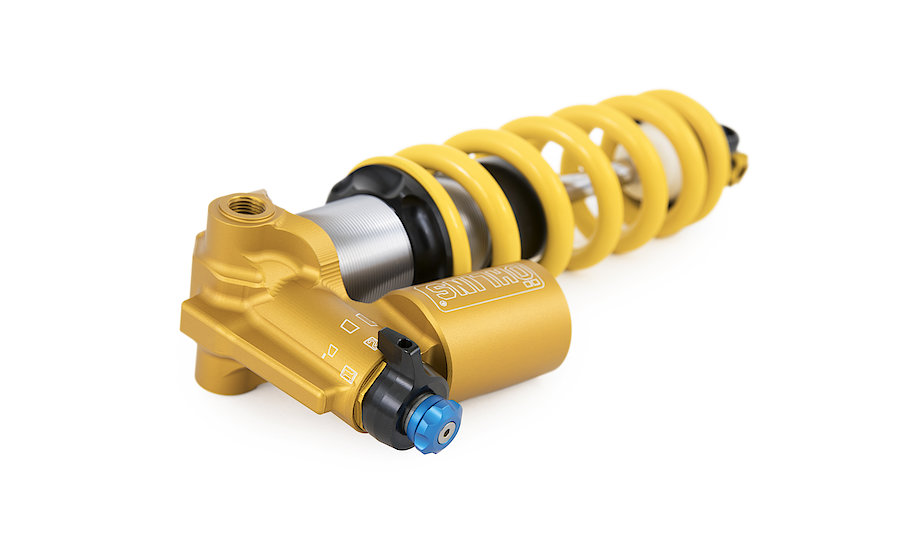

OHLINS TTX COIL SHOCKS
TTX Twin Tube Technology – Custom built for mountain bike racing.
Description
When it comes to speed, you can’t do a whole lot to stay in control unless your wheel is on the ground. Through its unique Twin Tube design, the Öhlins TTX shock works seamlessly with your bike to create a ride that has a remarkable amount of control over all terrain, incredible small bump compliance, increased traction, and better braking while maintaining a lively, fun, responsive feel.
You’re guaranteed a very smooth ride with the TTX which will allow you to chill out a bit or push your speeds that much further.
Features
- Nitrogen pressurized bladder reservoir system
- The only shock technology that truly offers low hysteresis damping performance
- Performance gain is substantial and easily appreciated by the rider as straight line stability and corner speed improves dramatically
- Spherical bearings to allow the shock to rotate while the bike is under side-load
- Weight is around 460 grams without spring
- Wide and precise adjustment range
- 3 level high-speed compression adjustment (Black)
- 16 click low-speed compression adjustment (Blue)
- 7 click rebound adjustment (Gold)
- Springs (sold separately)
- Available in precise 23 lb/inch (4 N/mm) increments, max tolerance 1,5%
- Spring weight 550-600 grams

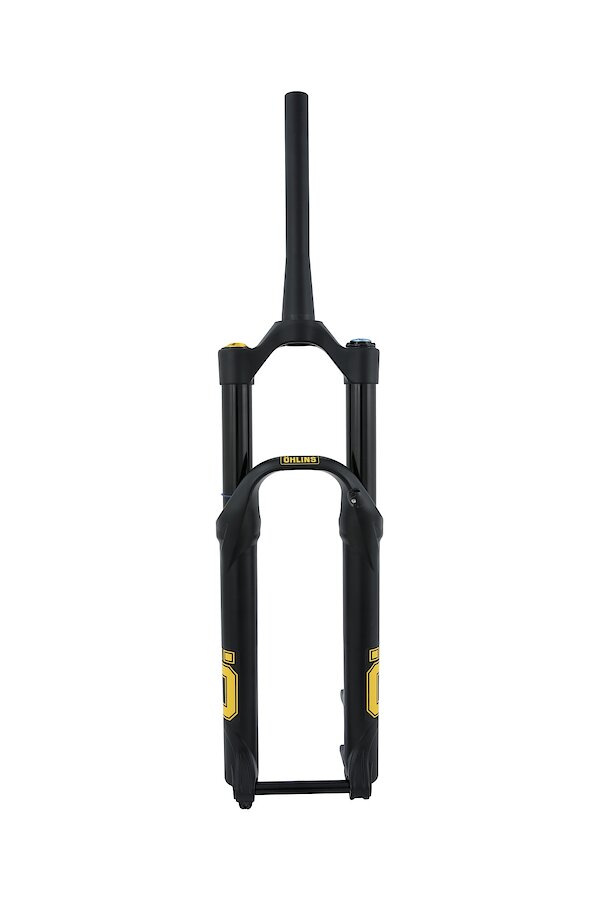

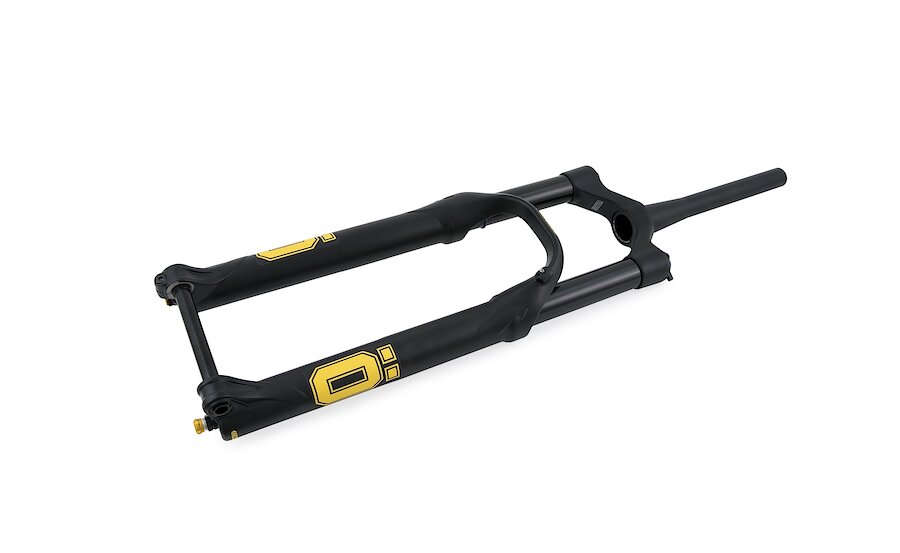

OHLINS RXF 36 m.2 AIR & COIL FORKS
MX suspension technology harnassed for All Mountain & Enduro riding – Custom built for mountain bike racing.
Description
The race proven TTX 18 damping from the DH Race Fork has been reworked for the all new RXF36 m.2 fork to give optimal traction and control on trails and Enduro race courses. The RXF36 m.2 is available as an Air or Coil fork. The TTX 18 cartridge kit featuring trail-optimised 18 mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.
The damping adjustment range is set specifically for trail to Enduro race use with 15 clicks of low speed compression and low speed rebound. For the high speed compression damping you get 3 clicks plus a climb mode setting. The retuned twin piston three chamber air spring system allows total air spring tuning from the initial movement through to the bottom out.
Features:
- Stroke 120 – 170 mm possible
- Stanchion tubes 36 mm
- Axle 15 x 110 mm
- Various offsets available
- Wheel size 27,5″ and 29″
- Maximum tire sizes 29 x 2,8 / 27,5 x 2,8 / 27,5+ x 3,2
- Aluminium design, hard anodised
- Fully serviceable and rebuildable
- 2 years limited warranty
Adjustment:
- Spring rate and progression / Spring preload on coil fork
- 15-click rebound damping
- 15-click low speed compression damping
- 3-click high speed compression damping
- Climb mode

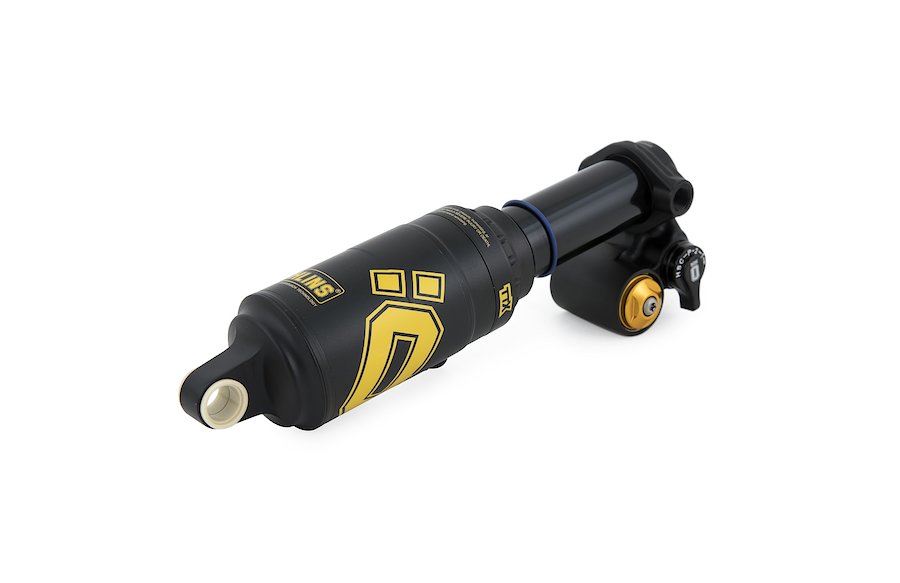

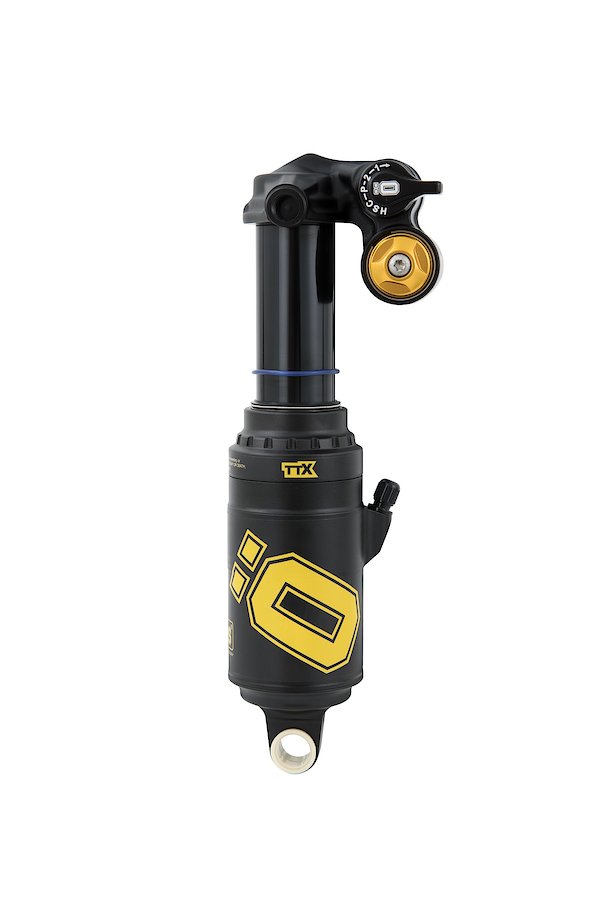

OHLINS TTX AIR SHOCKS
Ohlins new TTX air shock for MTB – Expanding the definition of trail
Description
Born out of the highly successful and well proven TTX 22 M coil shock comes the TTX Air shock absorber. The TTX Air combines the best of both worlds – the TTX 22 M’s damping performance and robustness with the light weight and the simple tuning of an air shock.
Features:
- Twin-tube technology (TTX)
- Pressurised system with gas reservoir
- Aluminium, hard anodised
- Serviceable, rebuildable
- 2 years warranty
Adjustment:
- 3 click high speed compression damping incl. pedal mode
- 10 click low speed compression damping
- 12 click low speed rebound damping
- Spring rate (via air pressure)
- Spring progression

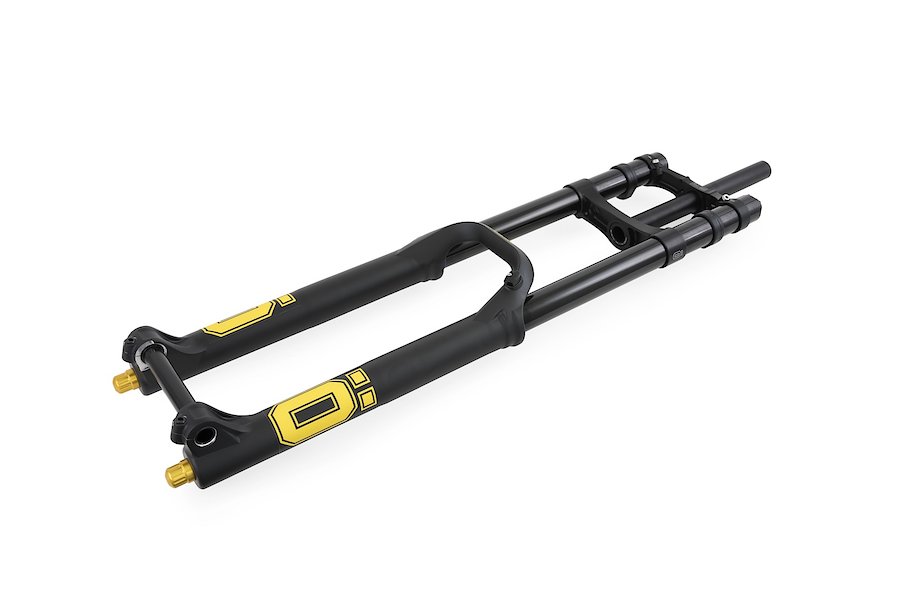

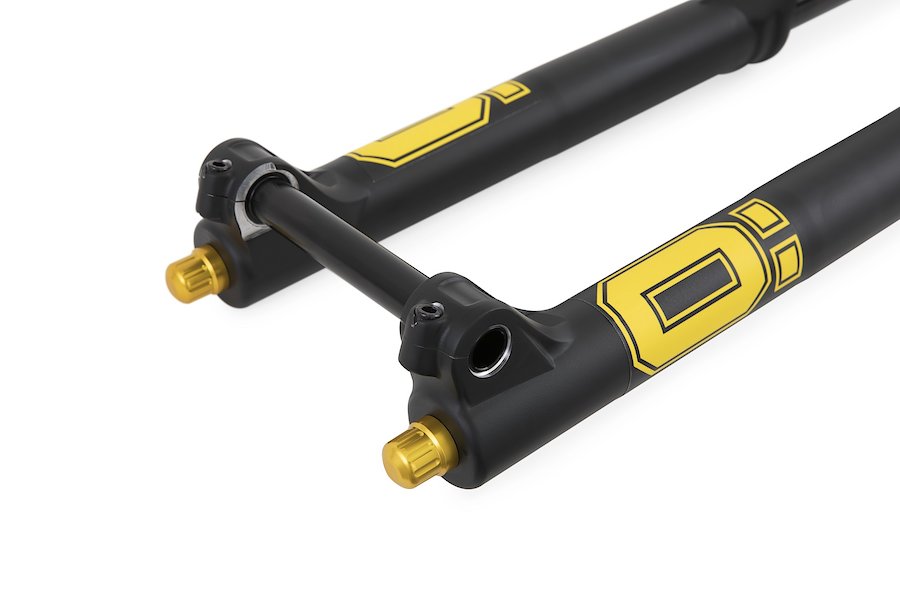

OHLINS DH38 RACE FORK

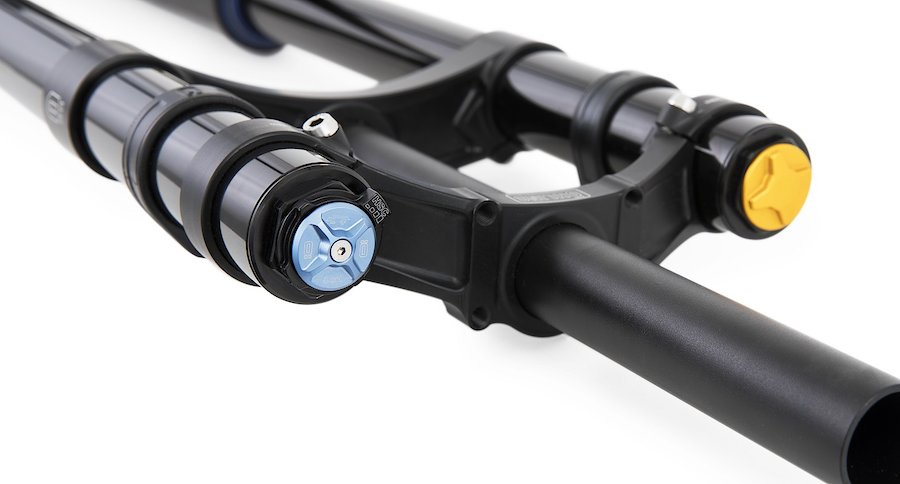

Ohlins new DH38 Air Dual Crown Race Fork
Description
When races are decided by thousandths of a second, you need the next level control. Whether you are racing between the tape or trying to hit that next gap on your favourite lap, with the Öhlins DH38 Race Fork you have the support and control to push further, faster and harder than before.
Öhlins TTX18 cartridge kit inside our DH38 Race Fork featuring downhill-optimised 18 mm piston for improved small bump sensitivity. Increased damping pressure bandwidth to achieve improvements in damping valve response and sensitivity. The adjustment range specifically for gravity use both race and park. 15 clicks of low speed compression and low speed rebound and 5 clicks of high-speed compression. Twin piston three chamber air spring system, isolated from the upper tubes to reduced heat build up and featuring Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out.
Technical Specifications:
- Stroke 180 & 200mm
- Stanchion tubes 38 mm
- Designed for tire sizes 29 x 2,8 and 27,5 x 3,0
- Fully serviceable and rebuildable
- 2 years limited warranty
Adjustment:
- Spring rate and progression external via air pressure
- 5-click high speed compression damping
- 15-click low speed compression damping
- 15-click rebound damping
LATEST OHLINS PRODUCTS FROM SUSSED OUT SUSPENSION
If you have any questions regarding Ohlins MTB products, please don’t hesitate to get in touch. Sussed Out are able to offer bespoke Ohlins products too so if you don’t see your bike listed, let us know and we’ll see what we can do!
