MTB SUSPENSION TUNING
TUNING
Here at Sussed Out Suspension we can offer individual suspension settings to suit lots of different rider requirements. We are able to offer custom valving for both shocks & forks to create a more suitable damping characteristic for your needs. We work with many MTB suspension products and offer tailored solutions to suit your particular suspension.
We are constantly working to find different settings to use for different applications and to suit different riders weights and riding styles. Individuality is the key and we like to treat every customer independently and offer them their own ‘tailor made’ setting & set-up. A wide number of MTB forks & shocks have a range of different shim stack arrangements to independently tune your fork or shock to your preference. We can discuss your needs, advise on a suitable setting and apply that to your shock or forks. This comes in combination with a full service and can really make the difference to both your riding enjoyment and performance!
We also work with 2 aftermarket suspension upgrade companies who offer some very exciting options for improving your MTB suspension.
Please feel free to contact us about your requirements. We’re happy to help you wherever we can and get you riding faster, more efficiently and more in control!
SHIFT-UP
Shift-Up XC Fork Tuning Services (Rockshox SID & Reba / Magura TS8)
Sussed Out Suspension work with independent tuners Shift-Up to offer you the latest in world class, lightweight damping solutions that come bespoke built to suit your weight.
So, not only can you shave more weight from your suspension, you can have World Cup winning suspension performance as well!
Shift-Up offer a range of different solutions. Depending on your required spec and weight reducing requirements, Sussed Out can prepare, fit and set-up either of these options to suit your weight and budget.

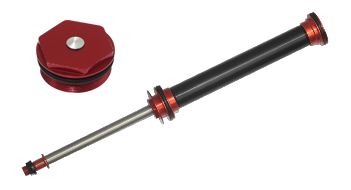

Option 1 – Ultra Light Pack Upgrade (-125g)
Shift Up Ultra Light Pack
Travel: 100mm or 120mm (also 80mm for 26″ only)
Rebound: pre-set
Anodised alloy hydraulic cap included
High resistance parts treatment
Ultra-lightweight (Weight reduction of 125g dependant on model)
High performance oil used inside when fitted
Used by some of the worlds best riders
Rock Shox SID/REBA© 2008-2014 (32 mm stanchions)
Available for 26″, 27.5″ & 29″
Shift-Up modified Rockshox SID’s! Now 100g lighter!!
Option 2 – Full Cartridge Upgrade (-100g)
Shift Up Cartridge
Travel: 100mm or 120mm (also 80mm for 26″ only)
Rebound: pre-set
Compression: lock-out (with Carbon lever)
High resistance parts treatment
Ultra-lightweight (Weight reduction of 100g dependant on model)
High performance oil inside
Competition lock out with increased resistance
Improved damping feel & feedback
Set to rider weight
Used by some of the worlds best riders
Rock Shox SID/REBA© 2008-2014 (32 mm stanchions)
Available for 26″, 27.5″ & 29″
Shift-Up modified Rockshox SID’s! Now 100g lighter!!
Option 3 – Hydraulic Cap (-65g)
Shift Up Hydraulic Cap
Anodised alloy hydraulic cap
Available in Red or Black
Ultra-lightweight (Weight reduction of 65g dependant on model)
High performance oil used inside when fitted
Used by some of the worlds best riders
Rock Shox SID/REBA© 2008-2014 (32 mm stanchions)
Available for 26″, 27.5″ & 29″
Shift-Up modified Rockshox SID’s! Now 100g lighter!!
ANDREANI
Andreani XC/All Mountain/Enduro Fork Tuning Services
Sussed Out Suspension work with all round suspension experts Andreani to offer you the latest in world class, damping solutions that come bespoke built to suit your weight.
With suspension upgrades from this company you can finally feel like your fork was designed especially for you with a damping character to help you get on that elusive
podium at any race!
Andreani offer a range of different piston upgrade solutions. Depending on your required spec and particular fork, Sussed Out can prepare, fit and set-up any of these options to suit your weight and budget.
| PART NO. | DESCRIPTION | YEAR |
| 12.K13.002 | Piston Kit Fork FOX 32MM FLOAT CTD | 2013-2014 |
| 12.K13.003 | Piston Kit Fork FOX 34MM FLOAT CTD | 2013-2014 |
| 12.K13.001 | Piston Kit Fork FOX 36MM FLOAT CTD | 2013-2014 |
| 12.K13.004 | Piston Kit Fork FOX 40MM FLOAT CTD / AIR / SPRING | 2010-2014 |
| 12.K12.001 | Piston Kit Fork Marzocchi 38MM 888 | 2010-2014 |
| 12.K14.001 | Piston Kit Fork RockShox Reba/SID 32MM BRAIN (2013) | 2013 |
| 12.K14.002 | Piston Kit Fork RockShox Reba/SID 32MM BRAIN (2014) | 2014 |
| 12.K14.003 | Piston Kit Fork RockShox 35MM BOXXER | 2010-2014 |
| 12.K14.005 | Piston Kit Fork ROCKSHOX BOXXER d.35 TEAM, WC CHARGER DAMPER | 2015 |
| 12.K16.001 | Piston Kit Fork CANNONDALE Lefty XLR/PBR | 2013-2015 |
| 12.K14.004 | Piston Kit Fork RockShox 35MM Pike | 2014-2015 |
MRP
MRP Ramp Control Cartridge
MRP RAMP CONTROL CARTRIDGE
MRP’s Ramp Control cartridges are designed to fit RockShox forks with 35mm stanchions. This upgrade threads into the air spring on Pike, Yari, Lyrik and Boxxer forks and allows the user to dial in the amount of progression in the fork without resorting to adding or subtracting RockShox’s bottomless tokens.
CUSTOM TUNE ON THE TRAIL
Undoubtedly, convenience is one of the biggest benefits of the ramp control cartridge versus internally accessed volume adjustment components. Internally accessed spacers aren’t that friendly to on-trail experimentation and tuning – requiring bulky tools and a clean environment to utilise. With Ramp Control, experimentation is so simple it’s encouraged! The powerful range of Ramp Control is harnessed through a simple 16-position knob with clearly defined detents. That enables you to arrive at your base setting in just one ride on a familiar trail, whereas internally accessed spacers would necessitate a trial and error approach – several rides followed by garage or shop sessions – to get to the same point.
Please note that these are only compatible with Solo Air Rock Shox forks.
They are available in 2 different versions:-
| Description | Colour | Size | Part No. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MRP Ramp Control Cartridge, Ramp Control cartridge to suit RockShox Non Boost Pike, Boxxer 13-16 Boxxer WC 10-16 fork | Black | Non-Boost | FKMRU2170 | ||||||||
| MRP Ramp Control Cartridge, Ramp Control cartridge to suit RockShox Boost Pike, Lyrik/Yari 15-16 Forks | Black | Boost | FKMRU2171 |
