Name: 2025 Mondraker Chaser R 29" 150mm All Mountain eBike Bosch 750W/H
SKU: 9d3c3bd69c8f-7
Price: 4299.00 GBP
Availability: InStock

Sale

Detailed description Frame Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard Sizes S: 380mm / M: 420mm / L: 450mm / XL: 490mm Rear shock Fox Float Rhythm, 205x65mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Shock settings LCM compression, LRM rebound, CML, air volume spacer 0.4 Fork Fox 36 29 Rhythm Float GRIP, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore Handlebar Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. Grips Onoff Beehive, 1lock-on, 135mm Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Saddle MDK ebike black Front brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Rear brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Brake lever Sram DB8, tool reach adjust, lever pivot bushings Rims Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes Spokes Mavic J-bend double butted, contactless lacing Front hub Mavic, Boost 15x110mm, IS 6 bolts Rear hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub Front tire Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead Rear tire Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead Crankset Race Face Aeffect-R ebike, 160mm Rings Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD Chain Sram SX Eagle, 12s, Powerlock Rear derrailleur Sram GX Eagle,12s Shift levers Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click Casette Sram PG-1210, 11-50T, 12s Derailleur hanger Sram UDH Weight 24,9 kg Display Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller Motor New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) Battery Bosch Powertube 750Wh

Product Description

Yeti SB140 29″ Lunch Rid... £8,999.00

Evil Offering LS Carbon 29&#82... £4,799.00

£4,299.00

2025 Mondraker Chaser R 29″ 150mm All Mountain eBike Bosch 750w/h

Frame Size	Clear

Email to a friend

SKU: 9d3c3bd69c8f-7 Categories: Bikes, Mondraker, Mondraker Ebikes Tags: 150mm, 160mm, 2025, 29", 29er, all mountain, bosch, Carbon, chaser, e-mtb, ebike, enduro, forward geometry, gen5, lifetime warranty, Mondraker, performance line CX, smart system, stealth air, Trail

Description

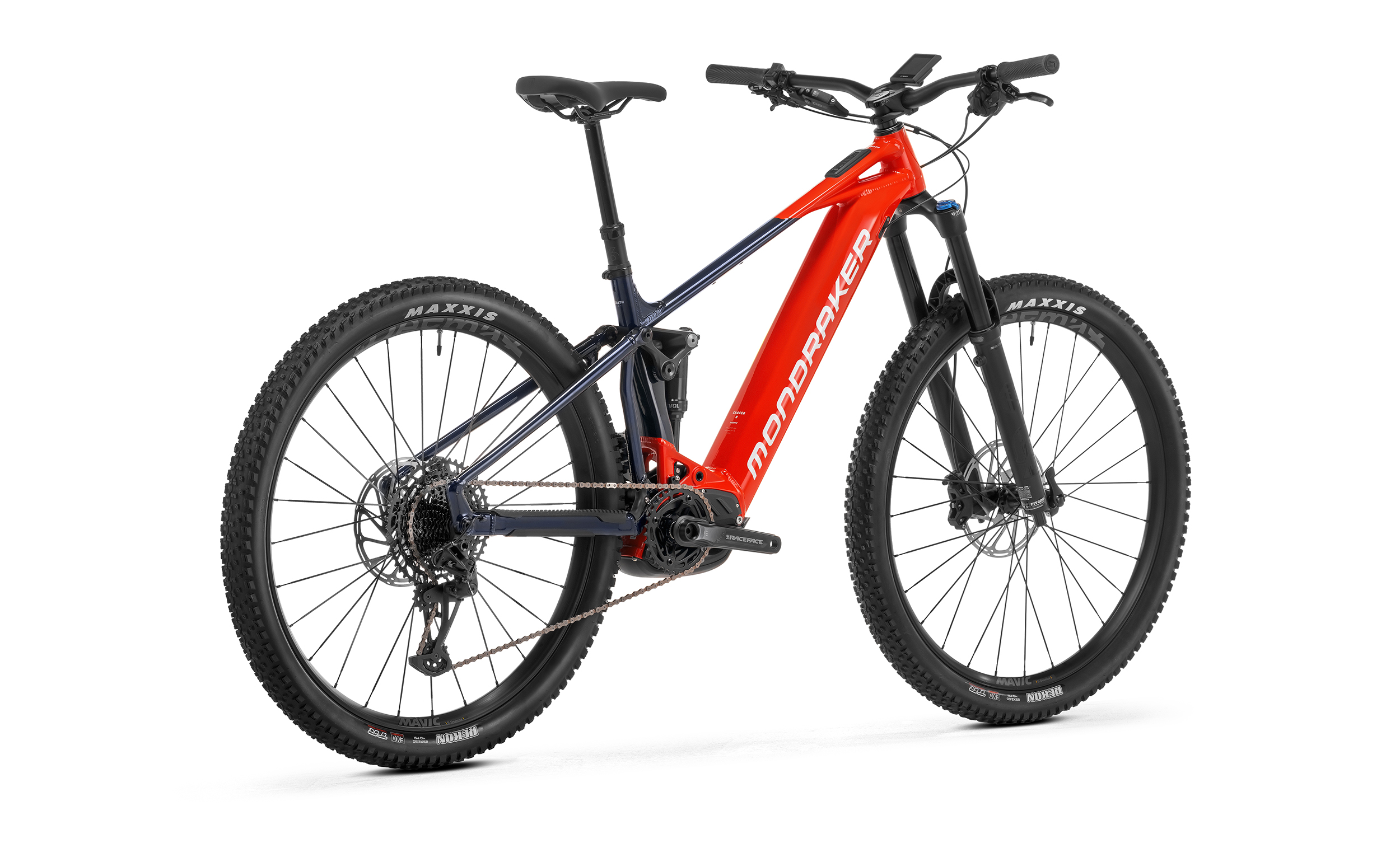

2025 Chaser R 29″

CHASER: FAR MORE THAN YOU IMAGINED

More because the Aluminium Stealth Alloy frame houses the latest version of perhaps the most relevant motor on the market today: the Bosch CX. More because the Zero Suspension System delivers 150mm travel (with a 160mm fork). More because you have all-new ONOFF components and Forward Geometry. Chaser is Mondrakers best and most accessible full suspension eMTB for anyone looking to get started in the world of ebikes.

TECHNICAL SPECS

Frame

Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Fox Float Rhythm, 205x65mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

LCM compression, LRM rebound, CML, air volume spacer 0.4

Fork

Fox 36 29 Rhythm Float GRIP, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload

Headset

Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Saddle

MDK ebike black

Front brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front tire

Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire

Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle,12s

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1210, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

24,9 kg

Display

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 750Wh

Additional information

Frame Size	Small
