2025 Mondraker Crafty Carbon XR 29" Bosch Gen5

Product Description

Yeti ASR 29″ C-Series C2... £5,999.00

2026 Mondraker SLY RR 29&#8243... £5,399.00

2025 Mondraker Crafty Carbon XR 29″ Bosch Gen5

Email to a friend

SKU: 9d3c3bd69c8f-7-1-2-2 Categories: Bikes, Mondraker, Mondraker Ebikes Tags: 150mm, 160mm, 2025, 29", 29er, 600w/h, 800w/h, all mountain, bosch, Carbon, Crafty, crafty carbon xr, e-mtb, ebike, enduro, forward geometry, Fox, gen5, lifetime warranty, lightweight, Mondraker, performance line CX, smart system, stealth air, Trail, world cup

Description

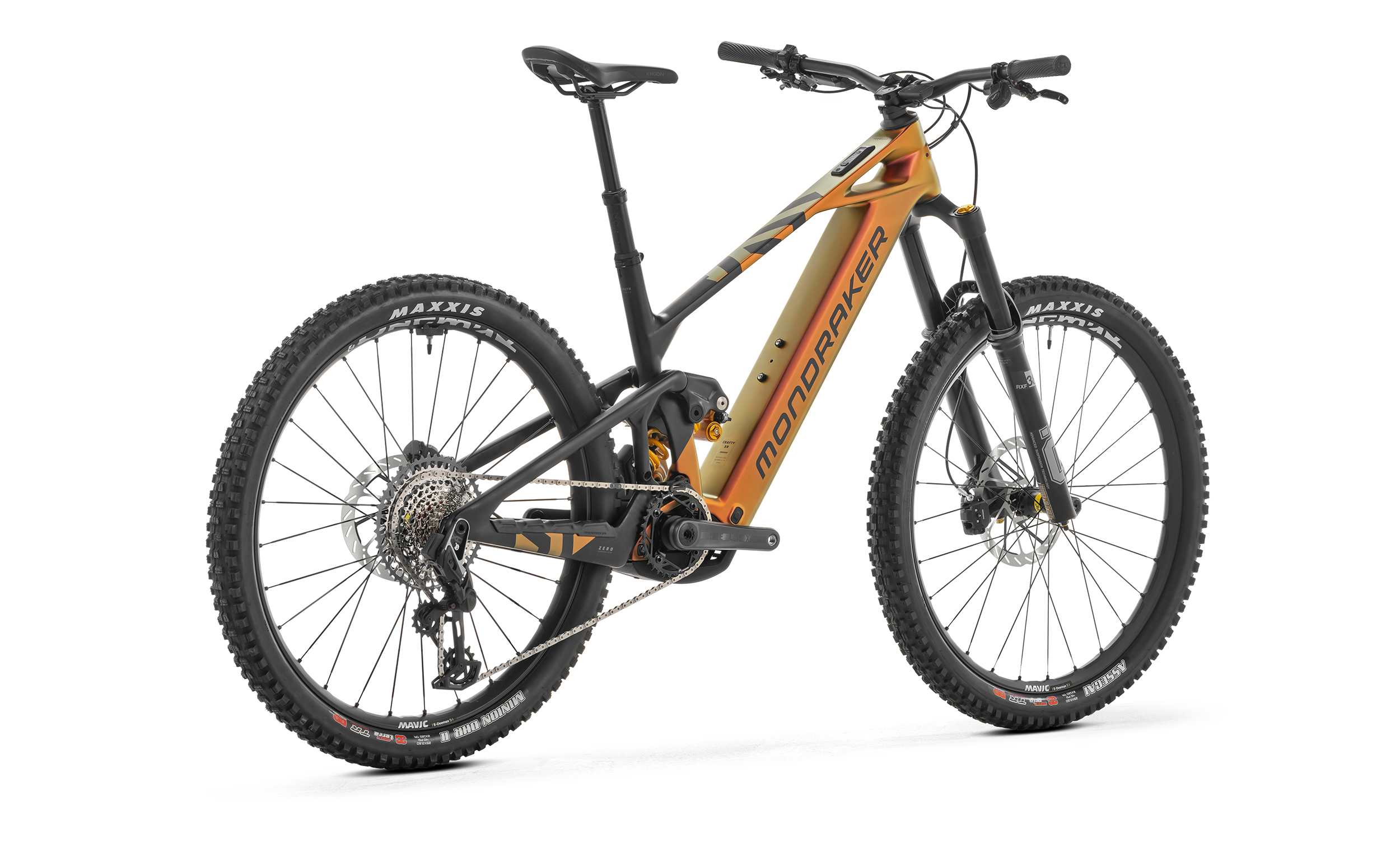

ALL NEW 2025 Crafty Carbon XR 29″

The game is over, welcome to a new generation of authentic e-Enduro. It’s time to present the latest evolution of the Crafty Carbon. It’s time to renew the most successful e-Bike Mondraker has ever made to make it more CRAFTY than ever before. Mondraker kept the unmistakable identity, increased the performance, the agility and the pedalling assistance. Fitted with Bosch’s revamped CX Performance motor together with the new, more efficient, lighter and removable 800Wh and 600Wh batteries.

Mondraker have taken a lot of pride in their builds and the new Crafty Carbon is no exception. Five builds with carbon fibre frames with just the R and RR builds using a rear triangle made from Stealth Alloy aluminium. You’ll be taking your Crafty Carbon to the limit, so they’ve specced forks with beefy 38mm stanchions and 2.6” tyres on all builds except the RR SL which takes a 36mm fork and 2.5” tyres instead, focused on performance and weight saving. All builds come with 4-pot brakes and 200/203mm discs and dropper posts from 140mm to 210mm depending on frame size.

The ultimate enduro bike in Mondrakers full power mountain bike category, it comes with 29” wheels and 160/150mm of travel. The new Crafty Carbon range is available in 5 different builds, all with a carbon fibre frame guaranteeing versatility and endurance on the harshest of terrains. Crafty Carbon also incorporates the very latest edition of the Zero Suspension System and a flip chip on the lower shock mount as well as two different swingarm lengths depending on frame size: 455mm (S, M, ML) and 465mm (L and XL).

PERFECT COMBO: CRAFTY CARBON + NEW BOSCH CX

100g lighter and smaller thanks to a more refined design architecture, the motor offers the same 85Nm of torque and 600W max power as before but with far better power delivery and control compared to previous models. Quieter overall when pedalling, mechanical rattles when riding downhill have also been eliminated so that you can ride faster and more discreetly than ever before.

MORE SIZES: MORE ADJUSTABLE – NEW M/L SIZE NOW AVAILABLE!

The new Crafty Carbon comes with optimised kinematics on the Zero Suspension System as well as Forward Geometry. With the addition of an intermediate ML size there are now 5 sizes to choose from. With this additional size, Mondraker have made the whole range more adaptable to an even wider range of body types so there’s always a bike that’s right for you, a bike that offers a near-perfect fit. Swingarm length proportional to frame size maintains that Mondraker ‘feeling’ throughout, regardless of frame size.

TECHNICAL SPECS

Frame

Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock

Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C10 compression, R20 rebound. Spring rate: S size 411 lbs, size M 457 lbs, ML size 502 lbs, L size 548 lbs, XL size 605 lbs
Fork

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle

Ergon SM-10

Front brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims

Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

Spokes

Mavic straight-pull double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire

Maxxis Assegai 29×2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 29×2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset

e*Thirteen Helix Race Carbon E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS, T-Type, 12s
Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1295, 10-52T, T-Type, 12s
Weight

23,1 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor

New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 600Wh

Additional information

Frame Size	Extra Large
