Description

INSURGENT LS MX

ENTER THE INSURGENT

The Insurgent LS is available as a mixed-wheel MX or full 27.5″ platform. Small wheels with a 180mm fork for mind-melting laps, or MX with a 170mm fork for added stability, steeper lines, and plowing downstream. 27.5” never died. It just quit caring what people think.

PARK SHREDDER OR ENDURO RACER?

The Insurgent LS is the most shape-shifty Evil to date, and no matter the configuration, it’s built for the long send. Sure, you can comfortably pedal it uphill, but gravity is the bullseye that this machine nails every time. With all the best bits of our Wreckoning platform, and a little something extra, the Insurgent will mop up your mistakes and crack open possibilities.

Even our best bikes can be improved and better shred-prepped. We’ve found a few dark elements to crank up the Insurgent’s DH appetite. Alongside the fresh paint job, we’ve added SRAM’s Universal Derailleur Hanger that’s easily found at your local bike shop. If the tiny backwoods bike shop has any modern hanger in stock, it’ll be this one.

Riding is always better than wrenching, and our engineers aim to reduce your garage time. We’ve heard the battle cries over trunnion shock spacers and responded by capturing them in the linkage, so you no longer have to fiddle and fumble when installing shocks.

To top off this bike park battering ram, Evil will offer lifetime bearing warranty for Insurgent LS frames. Original owners can register their bikes on the Evil website. See our warranty site for more details to keep those pivots silky smooth.

In addition to our longest travel and slackest head tube, the Insurgent LS’ 27.5” rear tire provides more tread-to-butt clearance for a lower gravity-stance than any of our other bikes. In addition to shaving grams, the smaller rear wheel gives the bike a touch more agility than our Wreckoning bruiser. Both builds eat trail all day, whether in the park or on rough race tracks, but the Insurgent leans a tad harder toward a daylong park party.

As with all of our models, the Insurgent LS uses Super Boost rear axle spacing and a wide main pivot to render that rear end stiff and flickable. When it’s time to hold a line or land an “uh-oh” these stiff triangles have your back.

All EVIL bikes come professionally built & set-up by Sussed Out Suspension!

SPEC

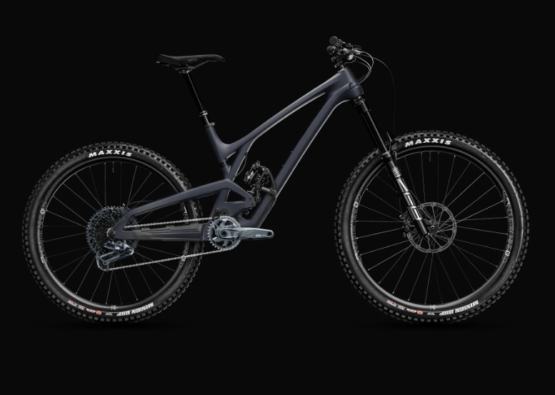

SRAM GX MECHANICAL i9 HYDRA

Frame:  Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible

Shock:  Rockshox Super Deluxe Coil Ultimate RCT, Trunnion, 205X65 ML 320 ST A2 S: 350lbs, M: 400lbs, L/XL: 450lbs

Headset:  Cane Creek 40 Series ZS Integrated Tapered Headset – Cups: ZS44/28.6 (Upper) and ZS62/40(Lower), Bearing: 36° x 45° – 41mm (Upper) and 36° x 45° – 52mm (Lower) ZN40 Zinc Coated, Crown Race: 28.6mm x 36° Integrated (Upper) and 40mm x 36° Press Fit (Lower)

Headset Spacers:  Poly Spacers 5mm black

Fork:  Rockshox ZEB Ultimate, Charger 3.1 RC2 W/ ButterCups, 170mm Travel, 44mm Offset

Handlebar:  Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm

Stem:  Evil 12 Gauge, Clamp: 35mm, Length: 45mm

Grips:  Evil Palmela Handerson lock-on

Brake – Front:  SRAM Code RSC

Brake – Rear:  SRAM Code RSC

Rotor – Front:  SRAM Center Line, 200mm

Rotor – Rear:  SRAM Center Line, 200mm

Brake Adapter:  SRAM Post Mount 20mm

Shifter:  SRAM GX Eagle, 12sp

Rear Derailleur:  SRAM GX Eagle, 12sp

Cassette:  SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52

Chain:  SRAM GX Eagle w/Powerlock

Crankset:  SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar

Bottom Bracket:  SRAM DUB 73mm BSA

Wheelset – Front:  Industry Nine Enduro S Hydra 29 Internal Width: 30.5mm, Hub: 110x15mm

Wheelset – Rear:  Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 157x12mm

Tire – Front:  Maxxis Assegai 3C Maxx Grip EXO+ TR, 29”x2.5″

Tire – Rear:  Maxxis Minion DHR II 3C Maxx Terra EXO TR, 27,5”x2.4″

Sealant:  E*thirteen Tire Plasma

Seatpost:  Bike Yoke Revive, S: 125mm, M: 160mm, L – XL: 185mm

Saddle:  WTB Volt Pro

Note:   Specifications are subject to change without notice

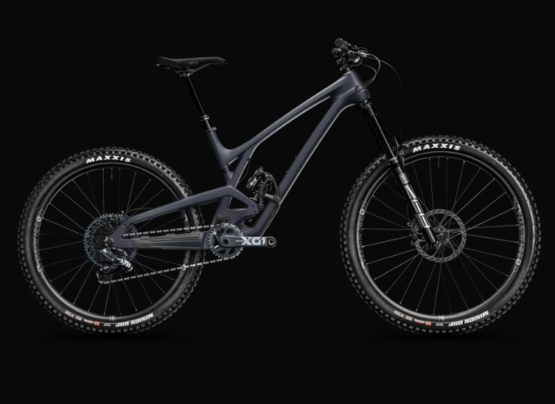

SRAM X01 & SRAM X01 AXS T-TYPE SPECS AVAILABLE ON REQUEST
