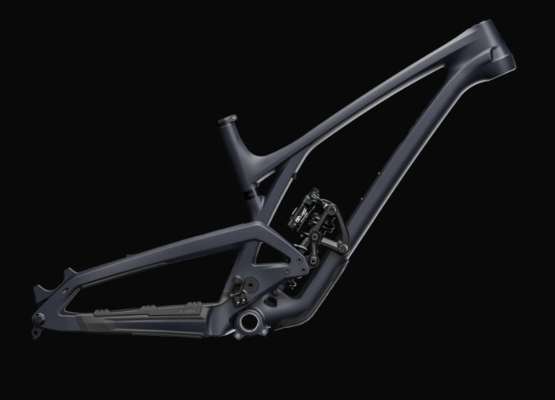

Evil Insurgent LS – frame only

ENTER THE INSURGENT

The Insurgent LS is available as a mixed-wheel MX or full 27.5″ platform. Small wheels with a 180mm fork for mind-melting laps, or MX with a 170mm fork for added stability, steeper lines, and plowing downstream. 27.5” never died. It just quit caring what people think.

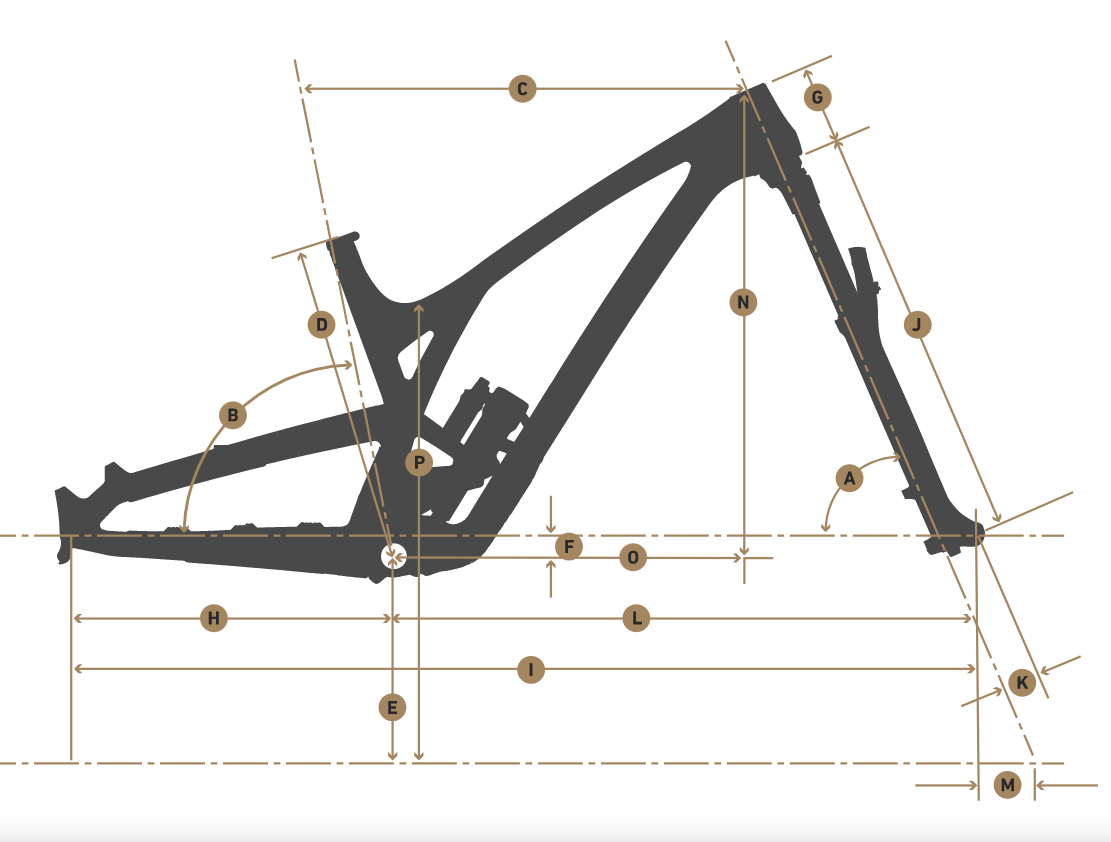

GEO

SPEC

Available Sizes – Small, Medium, Large, X-Large

Available Colours – Space Bot

Wheel Travel – 168mm

Rear Shock – Rockshox Super Deluxe Coil Ultimate, Trunnion 205×65, ML 320

Shock Hardware – Trunnion Upper, 20x8mm Lower

Fork Axle to Crown – 581mm, Rockshox Zeb 29″ 170mm / 577mm, Rockshox Zeb 27.5″ 180mm

Fork Offset – 44mm

Headtube – Tapered 1 1/8

Headset – Cane Creek 40 Series IS42 – IS52 , Upper ZS/44 Lower ZS/62mm Tapered OD

Seatpost Diameter – 30.9mm

Seatclamp Diameter – 34.9mm

Rear Wheel Diameter – 27.5

Maximum Rear Tire Size – 2.6″

Bottom Bracket Shell – 73mm Threaded

Chainline – 56.5mm

Chainguide Mount – ISCG05 Lower

Maximum Chainring Size – 36T Single Ring

Minimum Chainring Size – 30T

Rear Wheel Spacing – 157mm x 12mm

Rear Brake Mount Type – Post Mount 180mm

Maximum Rear Rotor Size – 203mm
